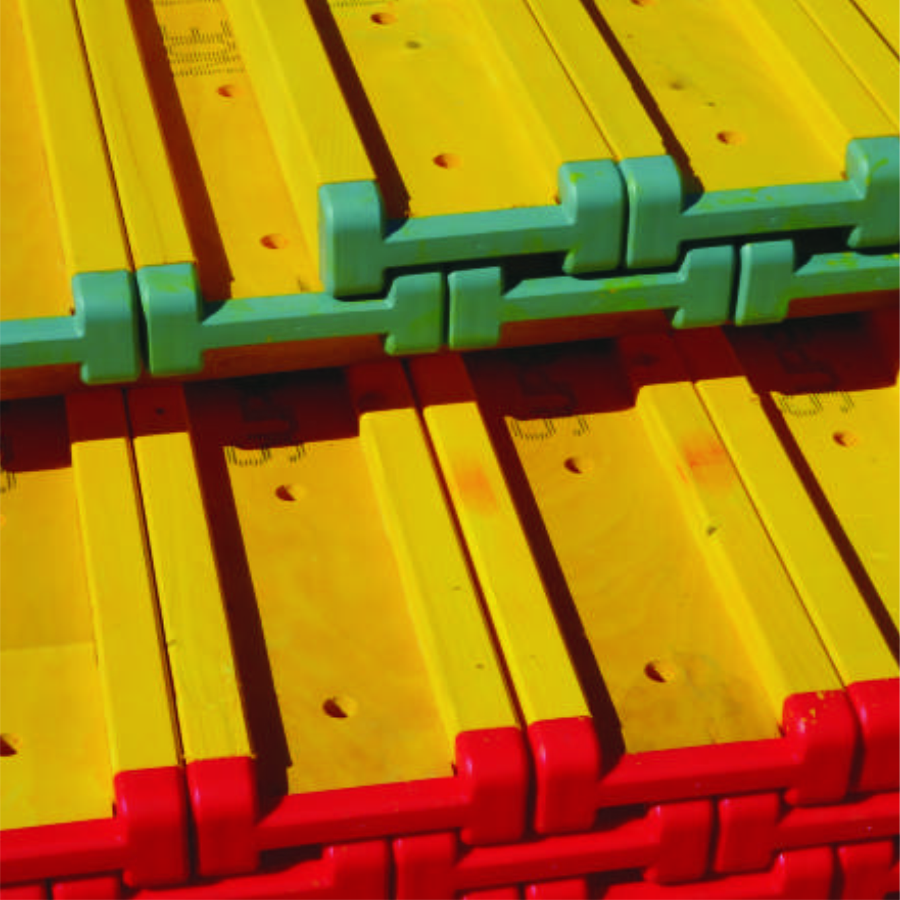

H-20 Wooden Formwork Beam – Carico, Austria
Tejus Centering & Const. Equip. (P) Ltd. supplies premium H-20 solid wooden formwork beams from Carico, Austria—engineered for strength, durability, and reusability in slab and wall formwork systems. These beams are available in lengths of 2.45 m to 5.90 m, with consistent quality and dimensional accuracy.
Specifications:
Beam Height: 200 mm (±2 mm)
Chord Height: 40 mm (–1.5%)
Chord Width: 80 mm (–1.5%)
Web Thickness: 30 mm (±0.5 mm)
Ideal for heavy-duty construction applications, H-20 beams offer excellent load capacity, precise tolerances, and extended service life.

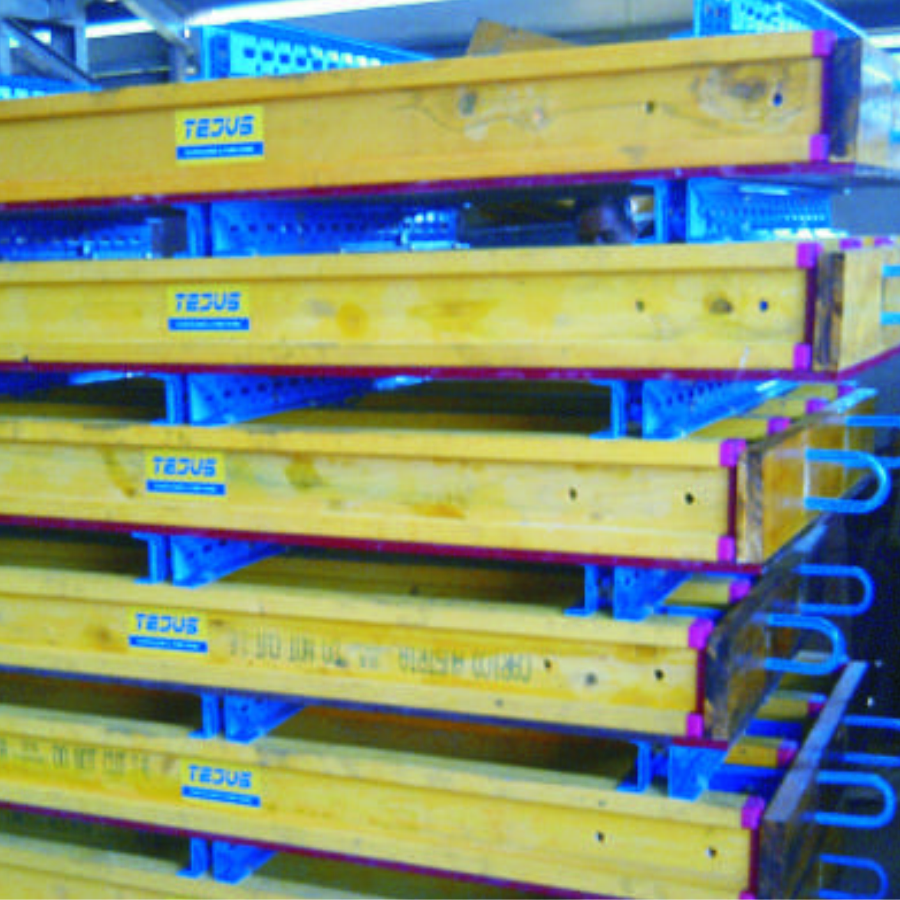

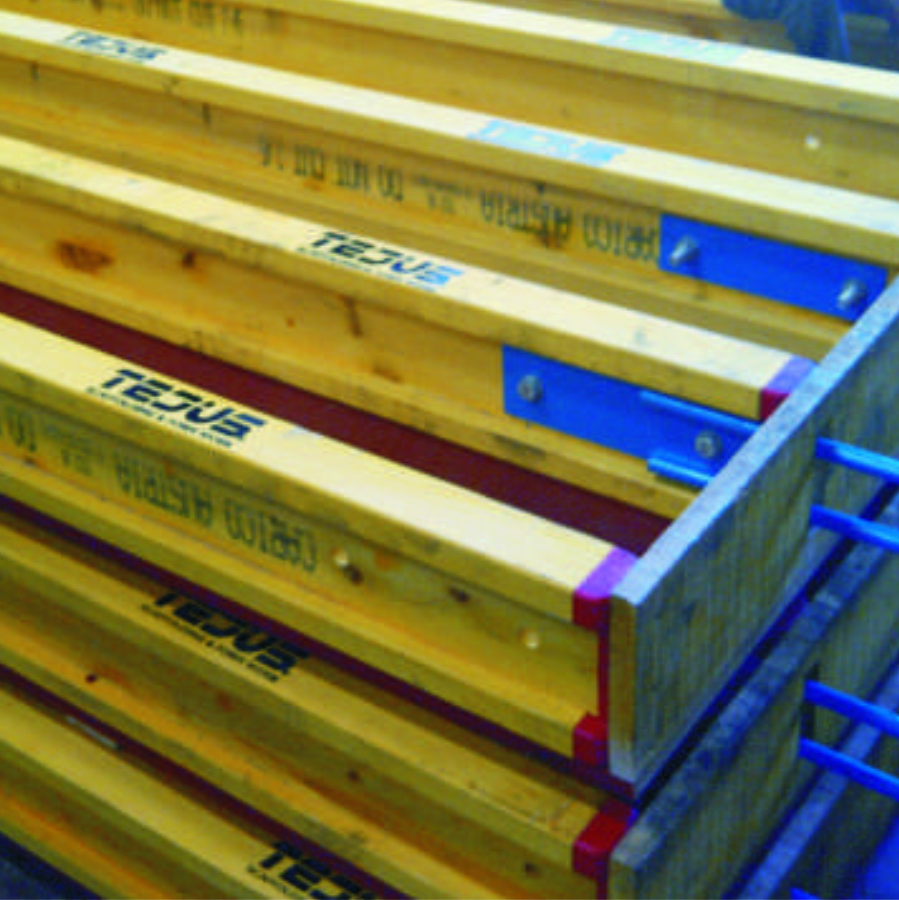

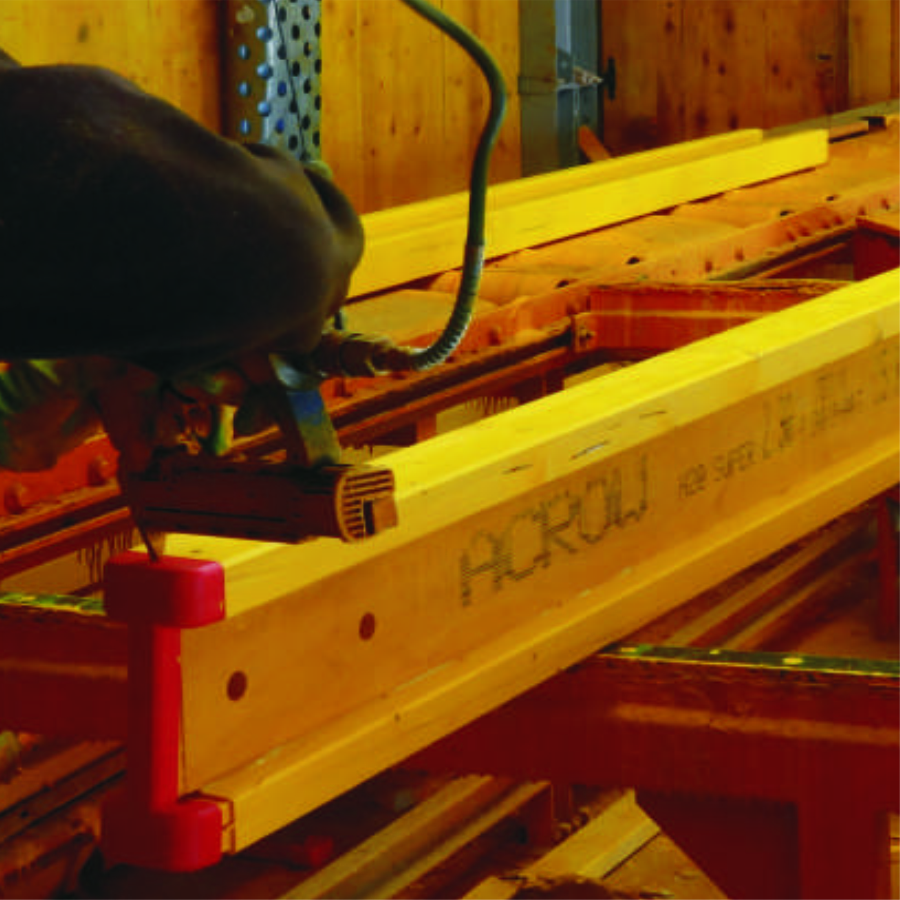

H-20 Beams – High-Performance Timber Formwork System

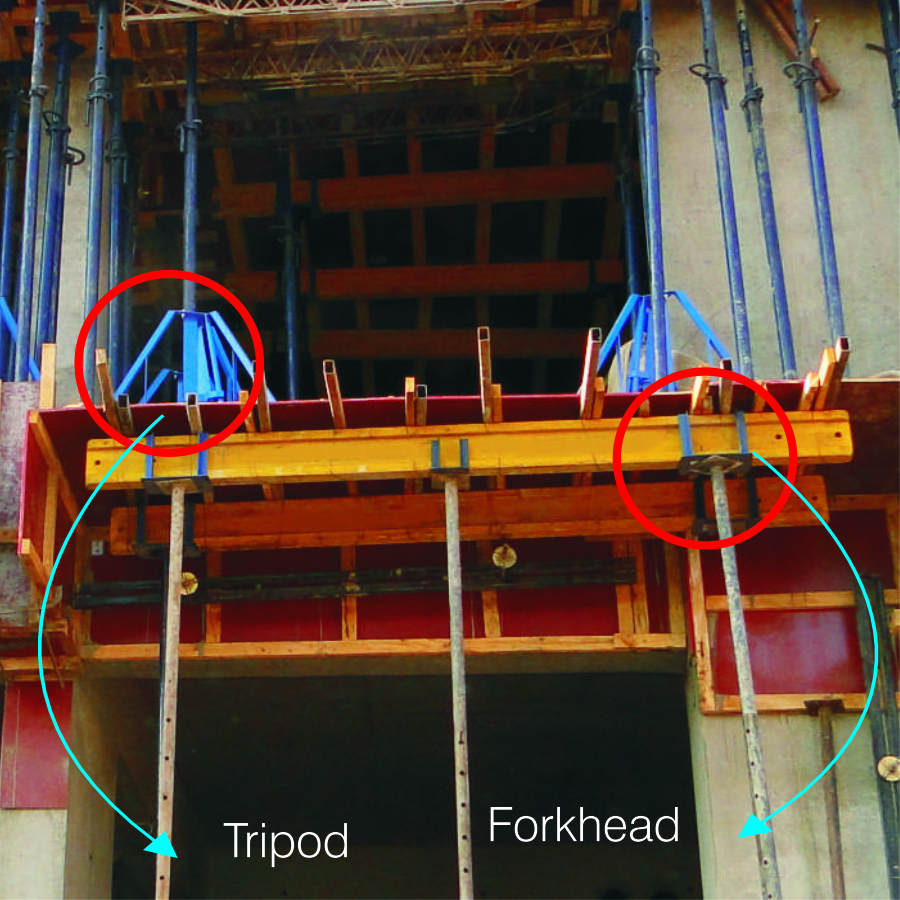

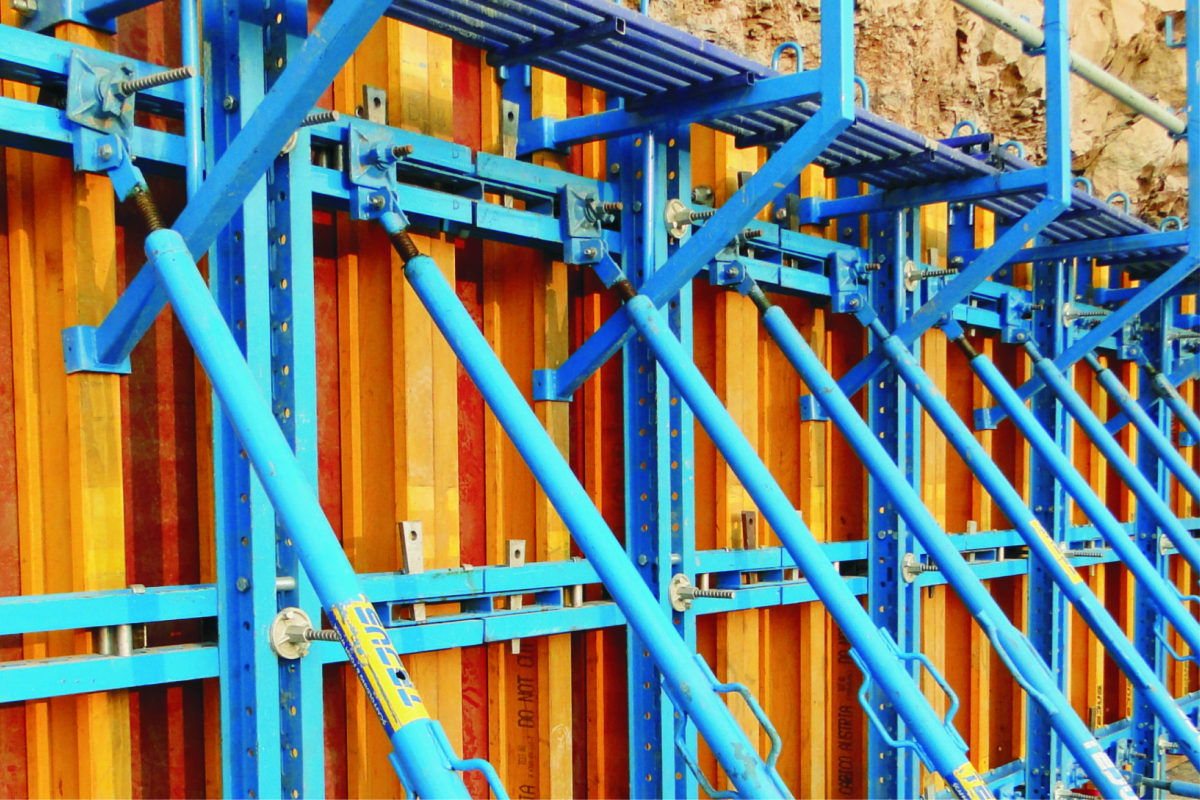

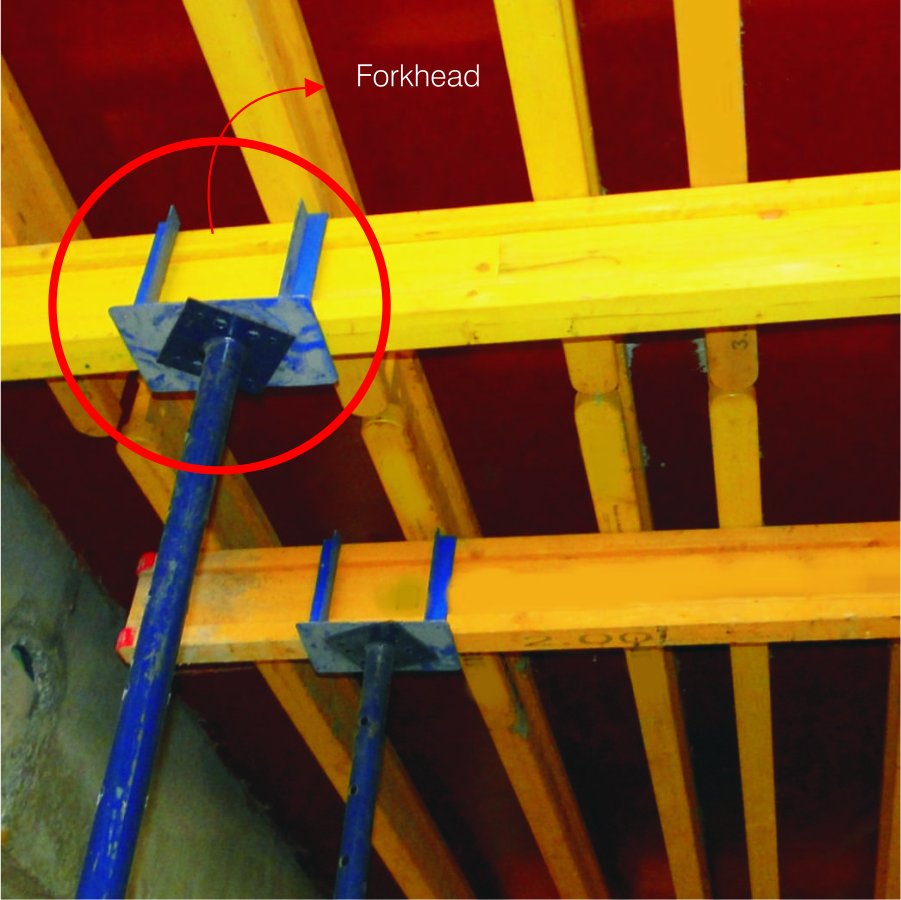

H-20 Beams are extensively used in slab formwork, columns, and retaining walls, offering exceptional strength, dimensional stability, and reusability. The chords are made from premium S10 spruce wood, planed and chamfered (approx. 4 mm) as per DIN 4074. The webs consist of laminated 3-ply solid wood panels with vertical growth rings for enhanced load capacity.
Wood Type: Spruce/Fir
Glueing Standard: BFU 100 (AW 100), O-Norm B 3023
Moisture Content: ~12%
Weight: Approx. 5 kg/linear meter
Surface Protection: Waterproofed color impregnation

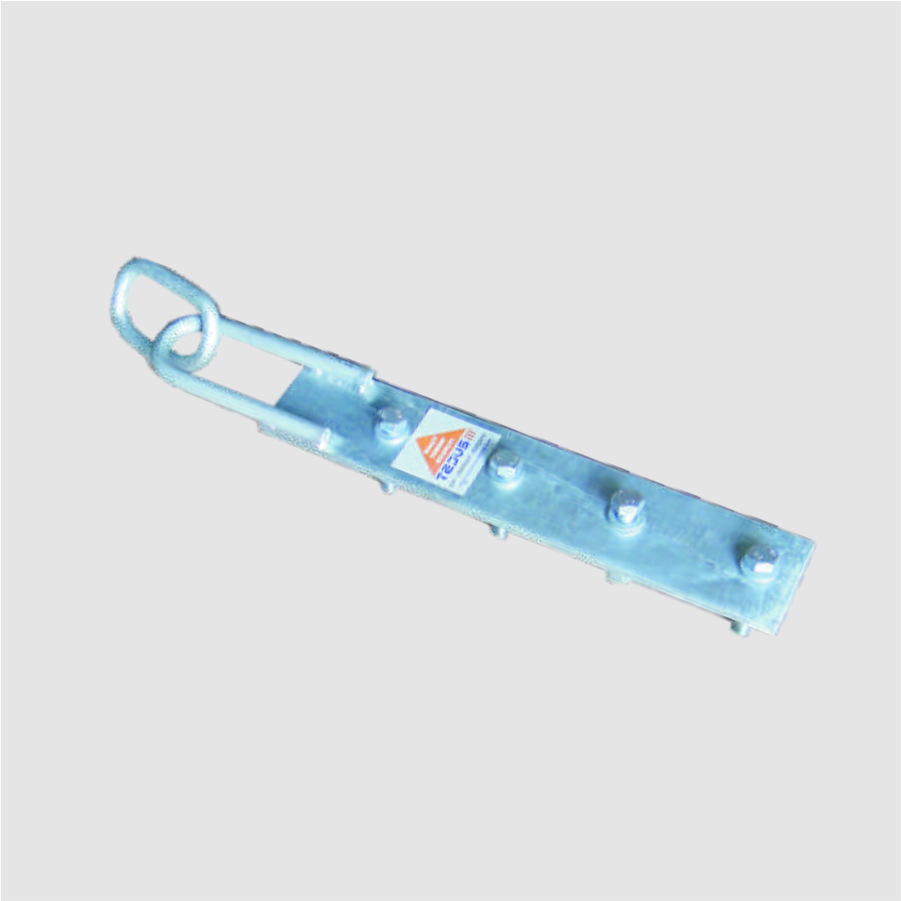

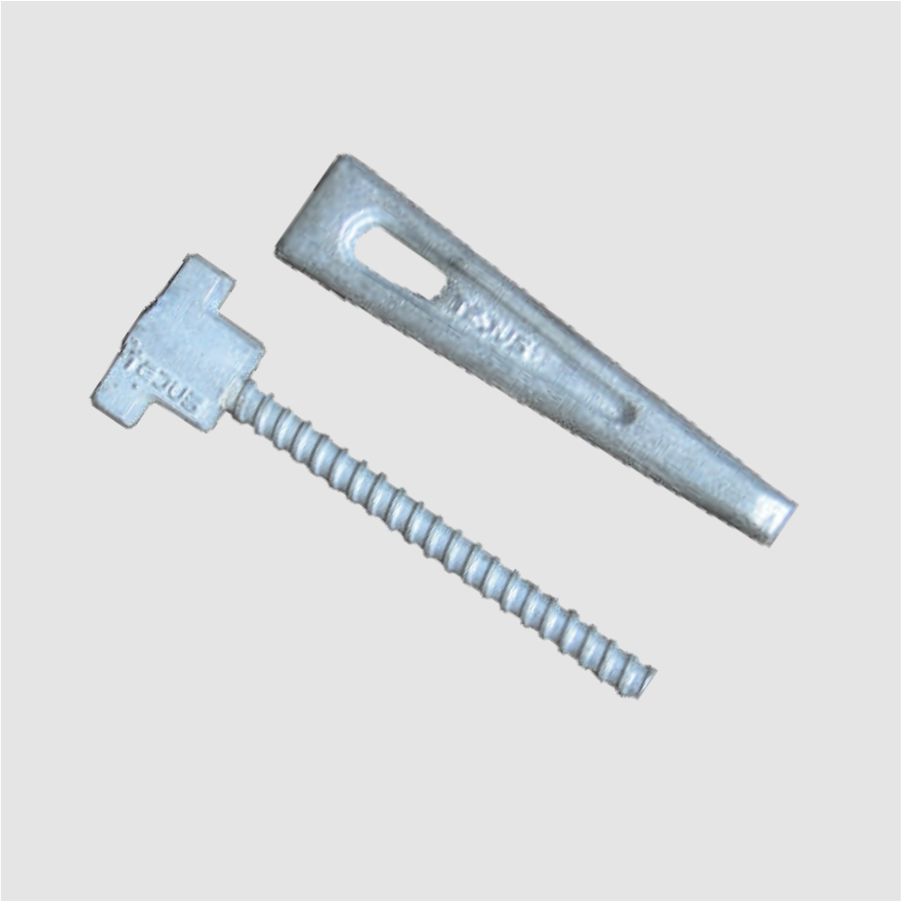

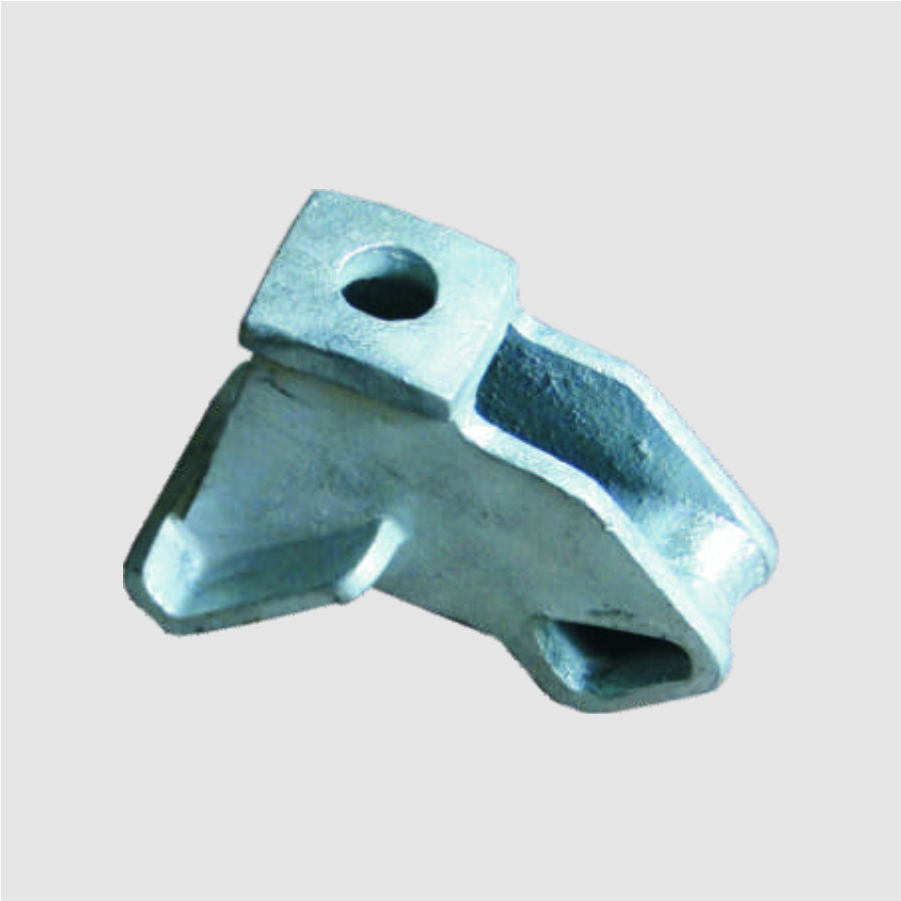

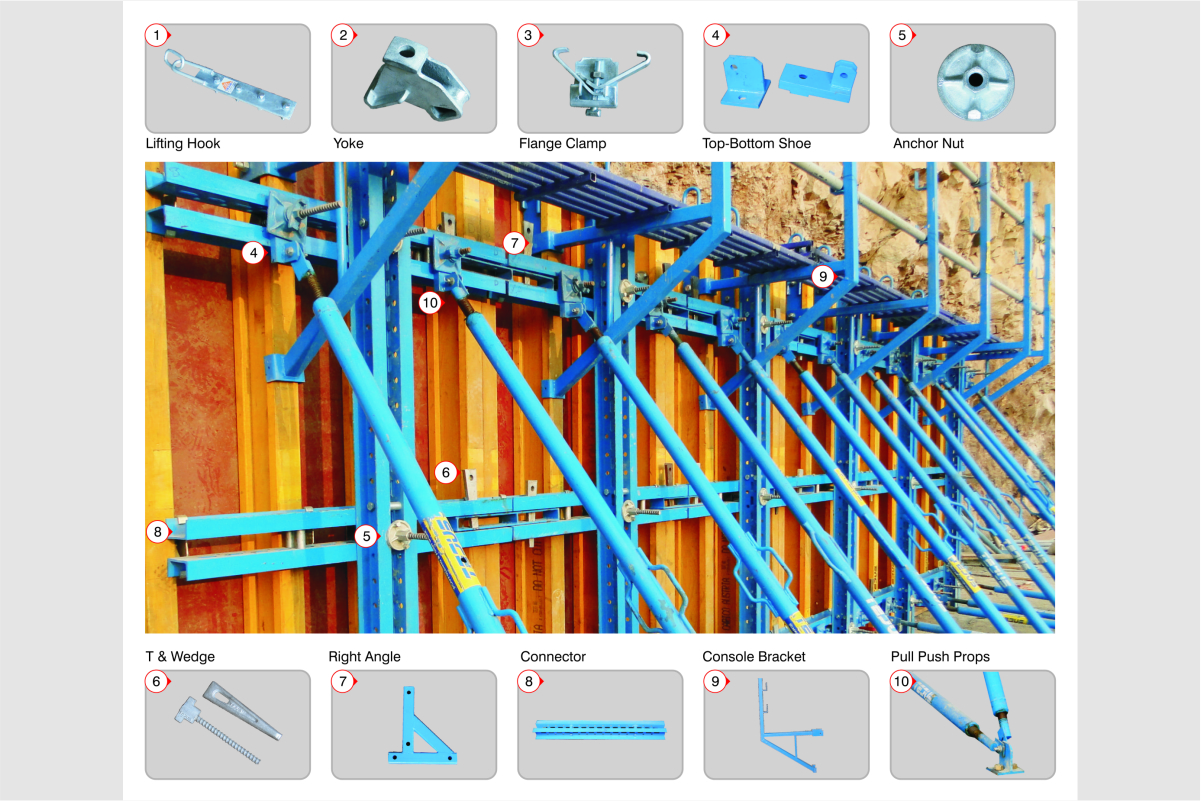

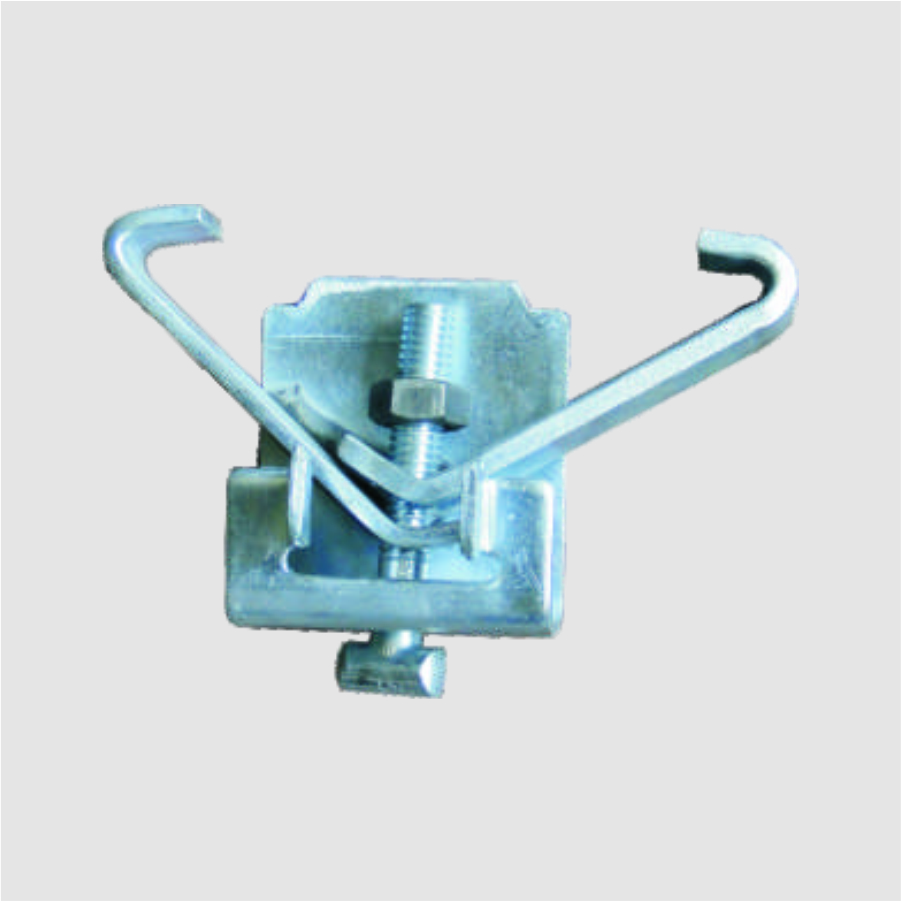

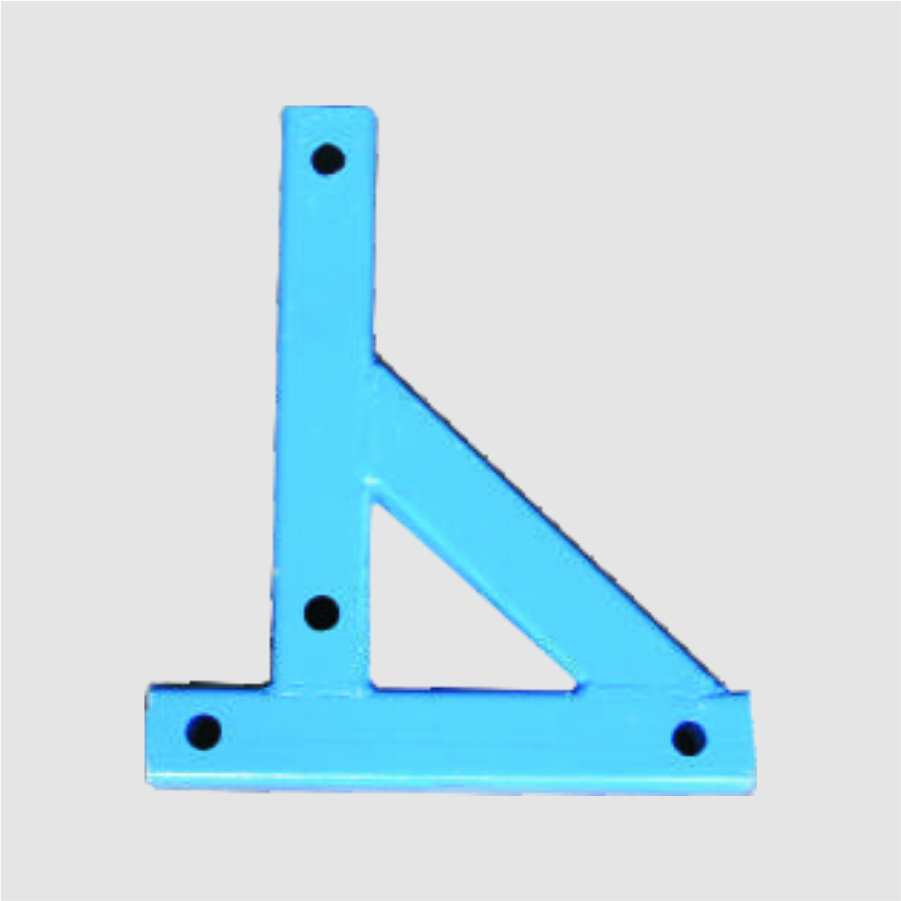

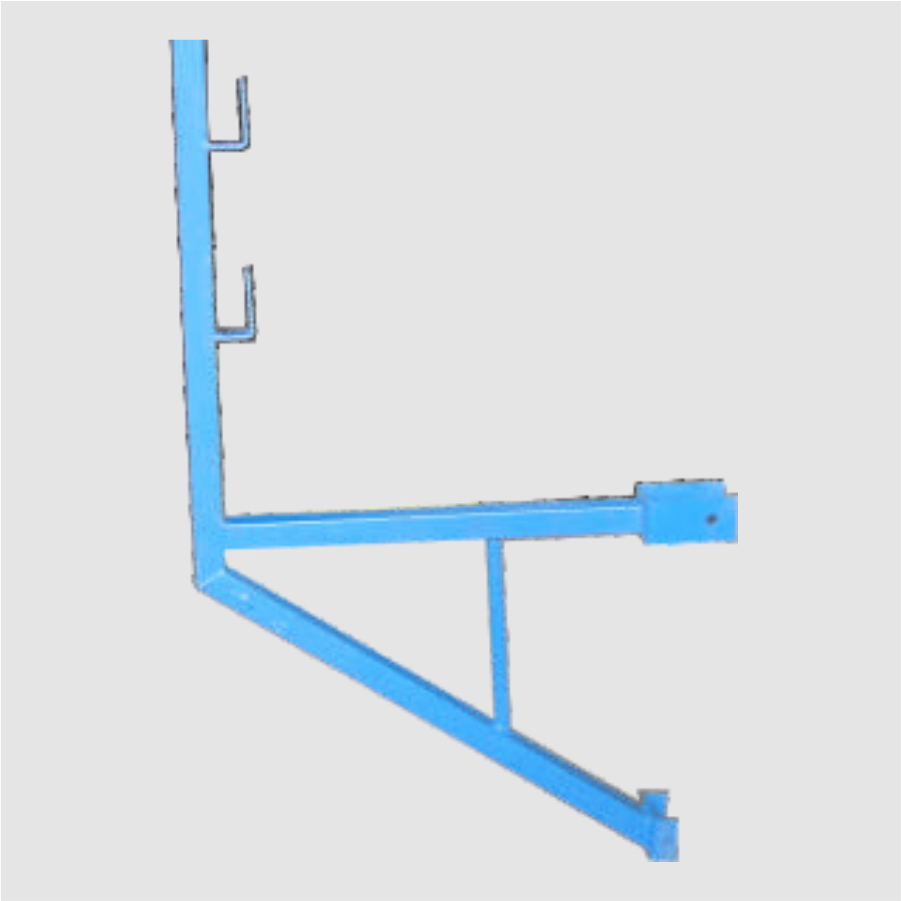

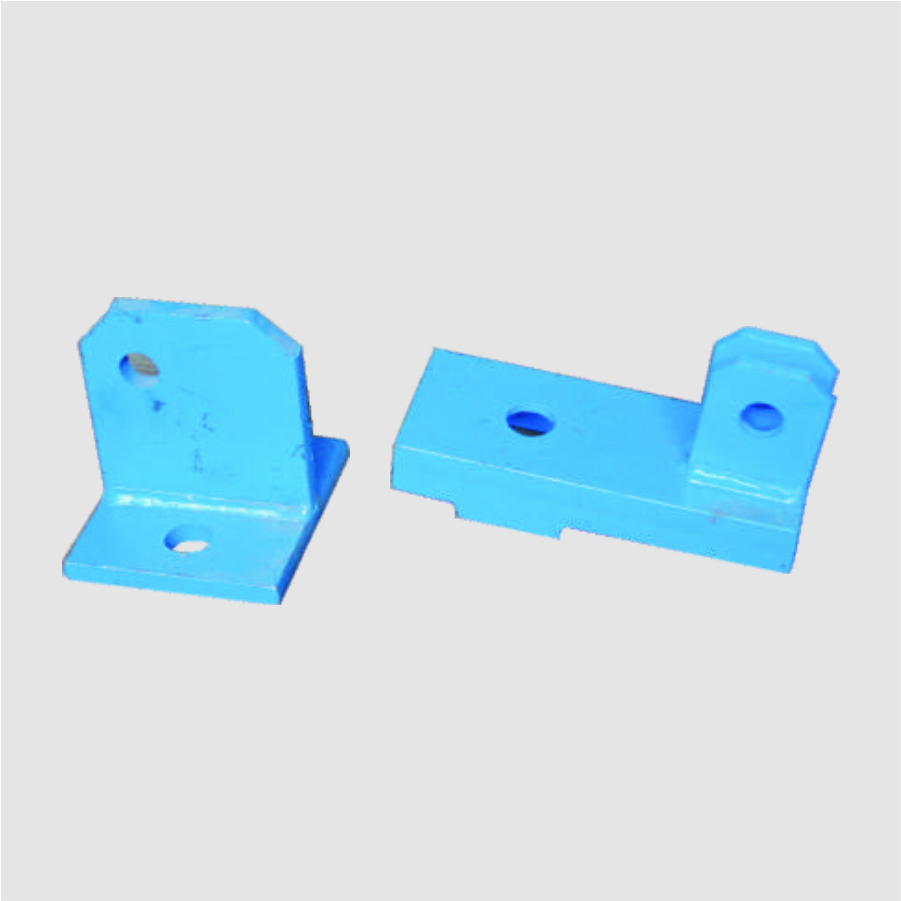

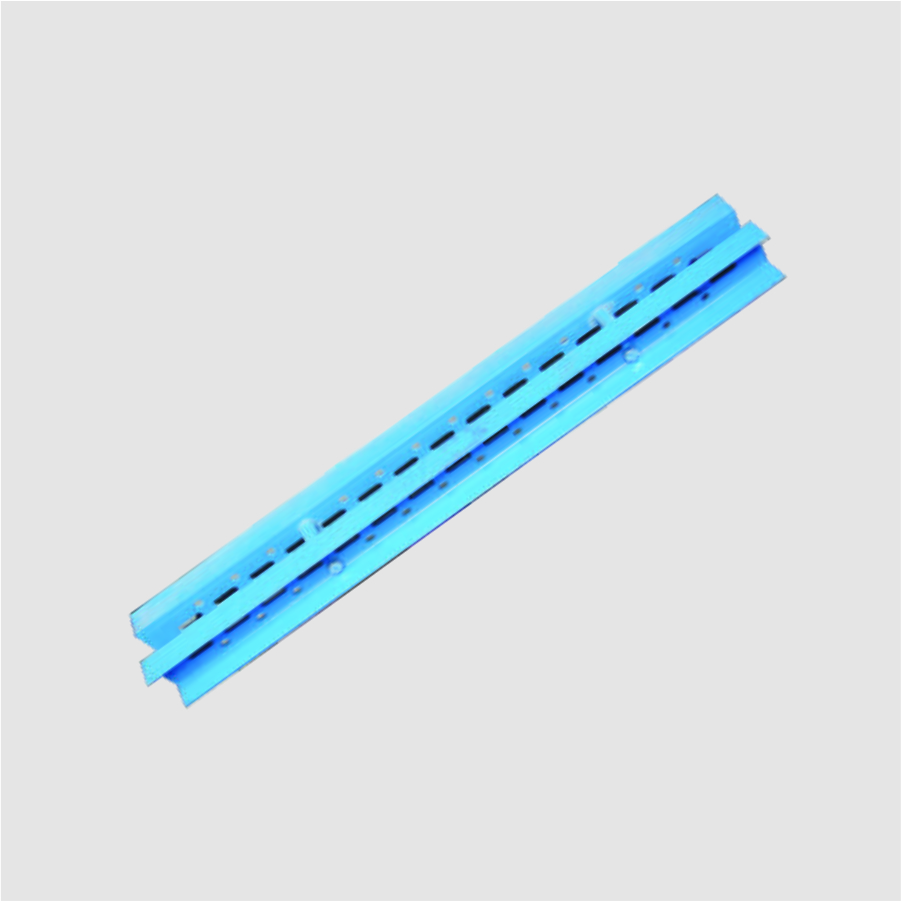

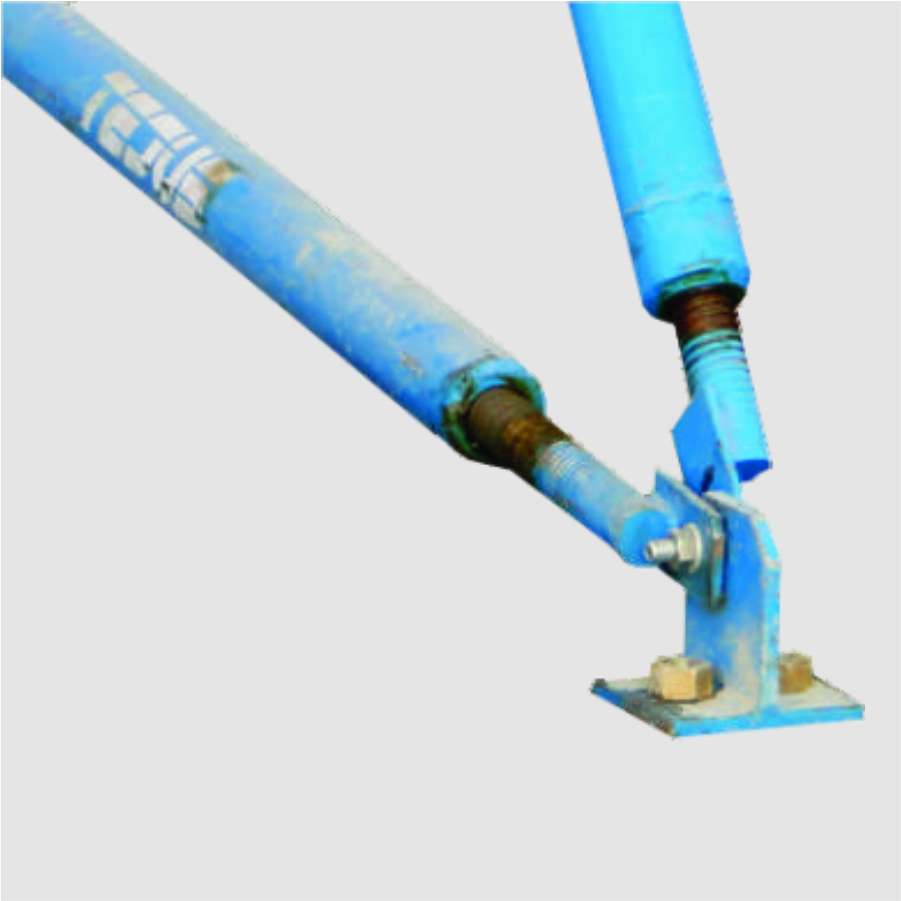

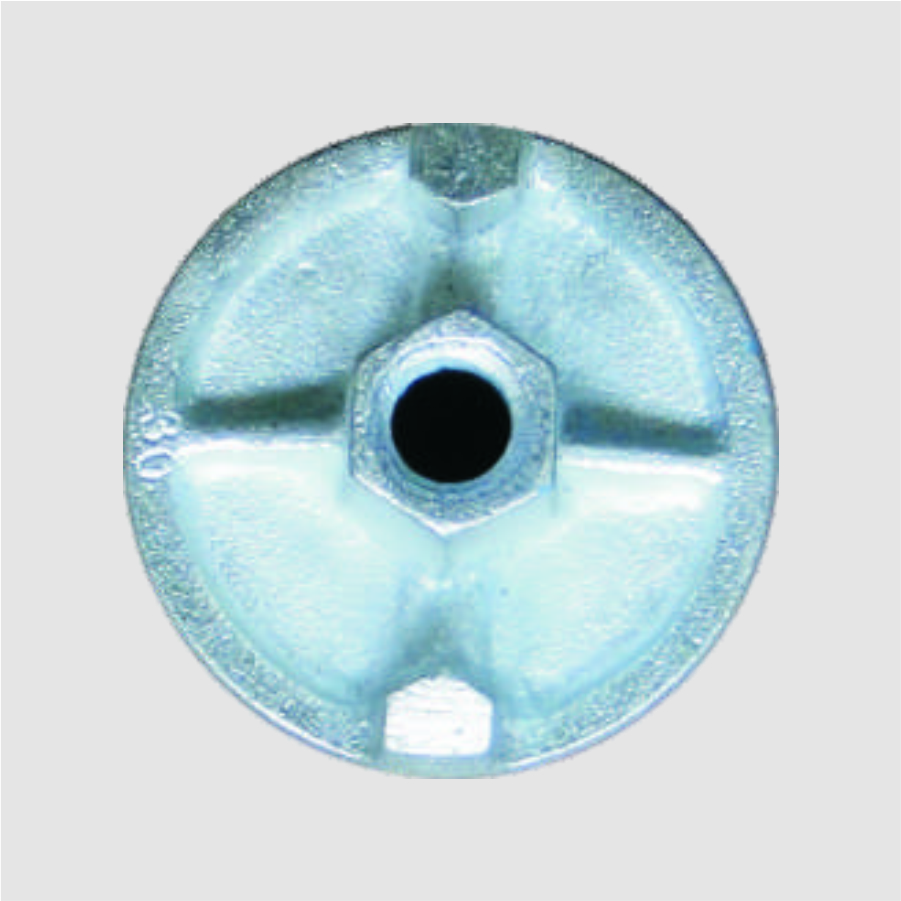

Tejus Centering also manufactures a complete range of H-20 beam accessories for all your construction needs.
